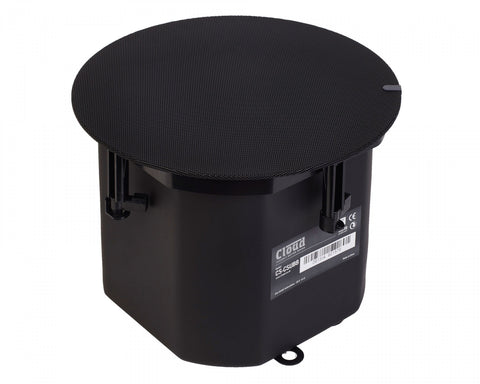

Cloud CS-CSUB8B 8" SpeakerCS-CSUB8B
Cloud's CS-CSUB8B 8-inch in ceiling subwoofer designed perfectly for any application. Excellent low frequency extension, ZeroEdge™ magnetic speaker grilles available in black or white, accessible high-impedance or low impedance switch settings and removable logos ensure Cloud speakers can be used discretely in almost any venue.
Designed exclusively for Cloud Electronics in the USA by a specialist team of speaker design engineers, the new CS-C Series speakers are extremely installer friendly and are tuned to complement the Cloud range of amplifiers and mixer amplifiers. Built for quality performance Cloud speakers are designed and tested to a superior standard by engineers who care and include a comprehensive 5-Year commercial warranty.
- Efficient 8" subwoofer for excellent bass extension.
- 8" Treated Paper Woofer with Rubber Surround
- Deep backcan design (200mm)
- Magnetic speaker grilles available in Black or White.
- Accessible high-impedance or low impedance switch settings.
- Removable logos to allow for discrete use.
- 100v - 100W, 50W, 25W, 13W, or 100W@4Ω.
- 70v - 100W, 50W, 25W, 13W, 7W or 100W@4Ω.
- 25v - 13W, 7W, 3W, 1.5W, 0.8W or 100W@4Ω.
- Nom SPL: 87dB@1mt Max SPL: 107db@1mt.
- Optional Tile Bridge.
- Dims: 286.0mm x 210.2mm.
- Weight: 3.7kg net, 4.5kg gross.
- Cutout: 271.0mm
- Finished in Black
- Response (f3): 86 Hz -20 kHz
- Response (f10): 64 Hz -20 kHz
- Impedance: 16 ohm
- Sensitivity (2.83 V/1 m): 89 dB
- Sensitivity (1 W/1 m): 92 dB
- Power handling: 75 W
- Maximum SPL: 111 dB
- Average coverage angle (2 kHz - 10 kHz): 107°
- Transformer taps: 64, 32,16, 8, 4 W
- Tweeter: 1 inch silk dome with phase plug
- Woofer: 8 inch treated paper with rubber surround
- Input: 4 pin Euroblock
Physical & Dimensions
- Diameter: 286mm
- Weight: 3.4kg
