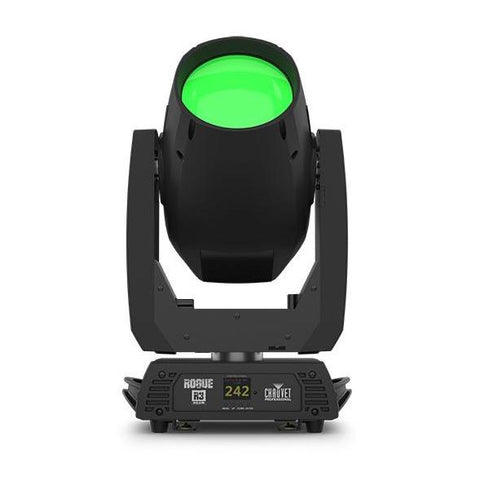

Chauvet Rogue R3 Beam

ROGUER3BEAM

Chauvet Pro

£2,220.00

Usually shipped within 2-3 working days

Chauvet Rogue R3 Beam is the light cannon of the Rogue series, outputting over 208,000 lux at 15 meters from its 300 W Ushio NSL lamp.

This fully-featured beam can be focused down to 0.8° degrees for extremely focused aerial effects alongside motorized frost and focus options. A colour wheel equipped with 14 colors complimented by a gobo wheel with 17 gobos give you a wealth of dynamic effects, and both wheels are fully scrollable at variable speeds.

Additionally, the unit features individually overlapping 8 and 24-facet prisms for an endless supply of creative beam looks. The unit is equipped with RDM and DMX protocols and features multiple control personalities.

FEATURES:

Fully featured, high powered beam fixture with a single color wheel, single static gobo wheel, layerable prisms, and 300 W Ushio NSL lamp rated at 8,000 hours life
Fast and precise movement of pan and tilt functions
Individually controllable and layerable 8- and 24-facet prisms
Frost for even light distribution
Tight 0.8° beam for extremely focused areal effects
RDM enabled for remote addressing and troubleshooting
17 static gobos for massive visual impact

SPECIFICATION:

OPTICAL

Light Source: 300W NSL Ushio lamp, 8000 K (color temp), 8,000 hours life expectancy
Color Temperature (at full): 7657 K
CRI: 80.8
Front Lens Diameter: 153 mm
Beam Angle: 0.8°
Field Angle: 1.6°
Cutoff Angle: 2°
Lumens – Output: 30,878
Illuminance (total): 208,006 lux @ 15 m

DYNAMIC EFFECTS

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
Colors: 14 + white, split colors, continuous scroll at variable speeds
Gobos : 17 + open (17 metal), continuous scroll at variable speeds
Dimmer: Motorized
Shutter/Strobe: Motorized
Focus: Motorized
Frost: Motorized
Prism: 8 facets, motorized, rotating
Prism: 24 facets, motorized, rotating
Strobe Rate: 0 to 15 Hz
Move in Black: Yes

CONSTRUCTION / PHYSICAL

Dimensions: 12.79 x 8.66 x 21.65 in (325 x 220 x 550 mm)
Weight: 34.4 lb (15.6kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

CONNECTIONS

Power Connection: Edison (Local) plug to Neutrik
Power Input: Neutrik powerCON
Power Output: Neutrik® powerCON®
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

CONTROL

Control Protocol: DMX, RDM
DMX Channels: 16 or 19
Modes/Personalities: 2 personalities (16, 19)

ELECTRICAL

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 422 W, 4.20 A @ 100 V, 60 Hz
Power and Current: 418 W, 3.55 A @ 120 V, 60 Hz
Power and Current: 411 W, 1.98 A @ 208 V, 60 Hz
Power and Current: 411 W, 1.78 A @ 230 V, 50 Hz
Power and Current: 406 W, 1.68 A @ 240 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

CE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Manufacturer: Chauvet
