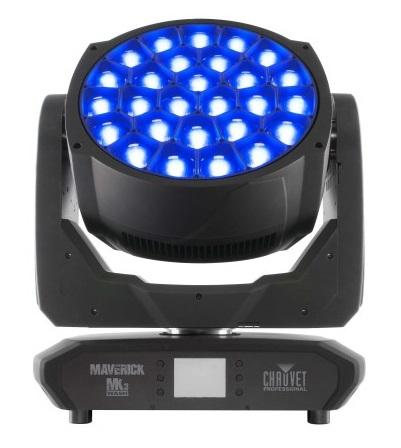

Chauvet Maverick MK3 Wash

The Chauvet Maverick MK3 Wash raises the bar on output, colour consistency, and pixel effects.

Powered by 27 (40 W) Osram RGBW LEDs, it has the muscle to handle any application, including long throw situations, with ease. Pixel mapping effects, built in colour macros and gobos, along with a CTO colour mixing option make this fixture the complete wash light package.

Control options including DMX, sACN, Art-Net, Kling-Net or W DMX round out this fixture, which can also receive Art-Net or sACN in, and send DMX out, simplifying cable runs.

FEATURES:

• Fully featured RGBW LED yoke wash fixture with pixel mapping and zoom
• 16-bit dimming of master dimmer as well as individual colours for smooth control of fades
• Built in colours for quick design possibilities
• Built in virtual gobo wheel with background colours for impressive atmospheric effects
• Precise movement of pan, tilt, and zoom
• Quiet operation for a wide range of installation situations
• DMX, WDMX, S ACN, Art-Net, and Kling-Net control for full flexibility
• RDM Enabled for remote addressing and trouble shooting
• Converts TCP/IP to DMX for shorter data cable runs
• 7° - 45° Zoom angle for variable beam sizes
• True 1 compatible power input
• Battery backup touch screen display with auto rotate depending on fixture orientation

SPECIFICATION:

Optical

• Light Source: 27 LEDs (quad-colour RGBW) 40 W, (2.6A), 50,000 hours life expectancy
• Colour Temperature (range): 2800 to 10000 K
• Beam Angle: 5° to 29°
• Field Angle: 7° to 45°
• Zoom Angle: 7° to 45°
• Illuminance (7°): 78,300 lux @ 5 m
• Illuminance (45°): 2814 lux @ 5 m
• Selectable PWM: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 15000Hz

Dynamic Effects

• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorised
• Strobe Rate: 0 to 20 Hz
• Standalone Colour Mixing: Yes
• Colour Temperature Presets: Yes
• Move-in-Black: Yes
• Dim Curves: 4

Construction / Physical

• Dimensions: 18.7 x 11.49 x 22.93in (459 x 292 x583 mm)
• Weight: 68.2 lb (31 kg)
• Exterior Colour: Black
• Housing Material: High-impact flame-retardant polymer

Connections

• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetroic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: Art-Net, Kling-Net, DMX, W-DMX
• DMX Channels Single Mode: 20, 128, 242 or 296
• DMX Channels Dual Mode – Function: 9,21,27
• DMX Channels Dual Mode – Pixel: 81,108,216
• Art-Net Channels Single Mode: 20, 128, 242 or 296
• Art-Net Channels Dual Mode – Function: 9,21,27
• Art-Net Channels Dual Mode – Pixel: 81,108,216

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 1,120 W, 9.51 A @ 120 V, 60 Hz
• Power and Current: 1,100 W, 5.35 A @ 208 V, 60 Hz
• Power and Current: 1,120 W, 4.84 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, METIP
• Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Manufacturer: Chauvet
