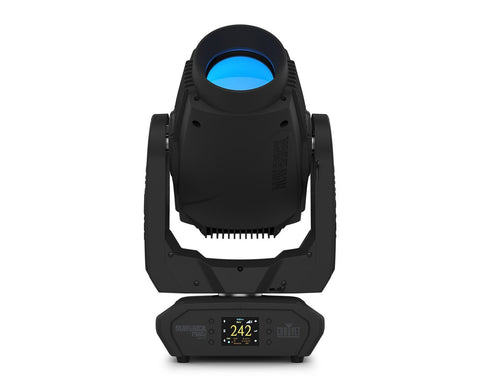

Chauvet Maverick Force S Spot

Chauvet Maverick Force S Spot is ideal for small to medium multi-faceted projects in need of seamless colour-mixing, advanced optics, and control options in a lightweight frame, well under 50 lbs.

The compact unit features a smart optical system that maximizes the output of 14,000 lumens and provides high-quality colour-mixing with a CTB filter. An 8-slot colour wheel is also added with split-colour combinations in mind. Maverick Force S features a speedy effects engine that includes motorized iris, frost, focus, a 5-facet prism, and wide zoom ranging from 4° to 43°.

Additionally, custom gobos created in collaboration with leading designers can be stacked on top of one another for dynamic effects. That is a lot packed in a small frame standing just over 2 ft tall. Control as you see fit with DMX, sACN, Art-Net or W-DMX.

FEATURES:

• Fully featured, compact and lightweight 350 W LED yoke spot fixture including CMY colour mixing, a colour wheel, zoom optics, and two gobo wheels, one rotating, and one static
• 16-bit dimming of master dimmer for smooth control of fades
• Variable CMY colour mixing system to create a wide pallet of colours
• DMX, WDMX, sACN, and Art-Net for full flexibility of control options
• RDM Enabled for remote addressing and trouble shooting
• 4.1° to 43.4° zoom range for variable beam sizes
• Iris, 5-facet prism, and frost for beam control
• True 1 compatible power input
• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
• USB slot for software uploads
• Battery backup display with auto-rotate depending on fixture orientation

SPECIFICATION:

OPTICAL

• Light Source: 1 LED (CW) 350 W, (2.7 A), 8400 K, 50,000 hours life expectancy
• Colour Temperature (at full): 6858 K
• CRI: 68.6
• CRI with CRI filter: 89.6
• Front Lens Diameter: 119 mm
• Beam Angle: 4.1° to 36.5°
• Field Angle: 5.1° to 40.4°
• Cutoff Angle: 5.4° to 43.4°
• Zoom Range: 4.1° to 43.4°
• Lumens - Source: 20,000
• Lumens – Output: 14,407
• Illuminance (4.1°): 62,131 lux @ 5 m
• Illuminance (43.1°): 1,745 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 4000 Hz, 6000 Hz, 15000 Hz

DYNAMIC EFFECTS

• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colours: 7 (including CRI and CTB filters) + white, split colours, continuous scroll at variable speeds
• Colours: CMY Wheels
• Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 9 + open (metal), static continuous scroll at variable speeds
• Gobo Size (1): Gobo Wheel 1 (rotating): 25.5 mm (outside), 17 mm (image), 1.1 mm (max. thickness)
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorised
• Focus: Motorised
• Frost: Motorised
• Iris: Motorised
• Prism: 5 Facets, motorised, rotating
• Strobe Rate: 0 to 20 Hz
• Move-in-Black: Yes
• Dim Curves: 4

CONSTRUCTION / PHYSICAL

• Dimensions: 14 x 8.8 x 25.0 in (360 x 224 x 636 mm)
• Weight: 47.4 lb (21.5 kg)
• Exterior Colour: Black
• Housing Material: High-impact flame-retardant polymer

CONNECTIONS

• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 3-pin and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: Art-Net, sACN, DMX, RDM, W-DMX
• DMX Channels: 22 or 29
• Art-Net Channels: 22 or 29
• Modes/Personalities: 2 personalities (22, 29)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 2 units @ 100 V; 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V; 5 units @ 240 V
• Power and Current: 554 W, 5.54 A @ 100 V, 60 Hz[6.0 A in-rush]
• Power and Current: 542 W, 4.53 A @ 120 V, 60 Hz[7.0 A in-rush]
• Power and Current: 522 W, 2.58 A @ 208 V, 60 Hz[15.0 A in-rush]
• Power and Current: 521 W, 2.33 A @ 230 V, 50 Hz[15.0 A in-rush]
• Power and Current: 521 W, 2.26 A @ 240 V, 50 Hz[15.0 A in-rush]
• Power and Current (resting): 77 W, 0.904 A @ 100 V, 60 Hz
• Power and Current (resting): 77 W, 0.701 A @ 120 V, 60 Hz
• Power and Current (resting): 76 W, 0.418 A @ 208 V, 60 Hz
• Power and Current (resting): 73 W, 0.375 A @ 230 V, 50 Hz
• Power and Current (resting): 74 W, 0.368 A @ 240 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC
• IP Rating: IP20, dry location
• Noise Level (ambient): 37.5 dB level @ 1 m
• Noise Level (Static - Full): 40.9 dB level @ 1 m
• Noise Level (Static - Eco): 37.9 dB level @ 1 m
• Noise Level (Static - Auto): 38.4 dB level @ 1 m
• Noise Level (Max): 45.5 dB level @ 1 m
• Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
• Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)

Manufacturer: Chauvet
