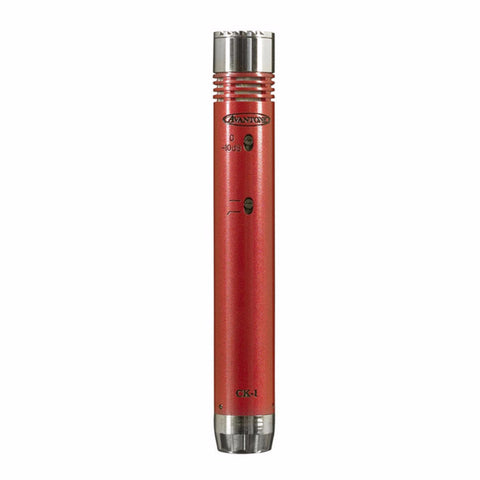

Avantone CK-1

The CK-1 in its normal stock version uses high grade Polystyrene and Metalised Polypropylene capacitors in the audio path.

This represents Avantone's commitment to quality as these normally are the type of "upgrade" components that are implemented by microphone modder/hot-rodders!

The high quality FET circuitry will yield pleasing professional results comparable to much more expensive designs. Any studio can proudly offer the CK-1 for instrumental and percussion miking, It exudes class visually as well as sonically. The CK-1 is equally at home on the stage for drum overheads, acoustic instruments and piano.

The CK-1 includes (3) 19mm (3/4") interchangeable capsules to provide unlimited miking possibilities! Manufactured using the finest materials yielding a very solid feel, superb structural integrity and rugged reliability. The rugged CK-1 mic is able to produce professional results with a clean sonic character.

The included SSM Shockmount is superb in allowing a precise positioning of the mic while inhibiting the transfer of unwanted vibrations up into the mic. This isolation allows for superior professional results. The 3 capsules (cardioid, omni, and Hyper-cardioid) offer versatility for accommodating virtually any miking task.

The CK-1 has separate -10 dB pad & 80 Hz LF roll off switches....The -10dB attenuation switch can be engaged when miking very high SPL sources to keep from overloading the electronics. The 80Hz high-pass filter switch can be engaged to reduce rumble and to keep unwanted low frequencies from "muddying up" the track.

Specifications:

Type
True Condenser

Polar Pattern(s)
Cardioid , Hyper-Cardioid & Omni Capsules included

Frequency Response
25-20,000 Hz +/- 3dB

Output Impedance
<=200 Ohms

Maximum SPL
138dB (0.5% THD @1000Hz)

Sensitivity
15mv/pa

S/N Ratio
1Pa 78dB

Noise Floor
< 17 dBA

Output Connector
Male XLR 3-pin

Included Accessories
-3 Capsules
-Padded Wooden Box
-SSM Shockmount

High-Pass Switch
80 Hz 6dB/octave

Attenuation Switch
-10 dB

Power Requirements
Standard 48 Volt Phantom / 5mA

Dimensions
(23mm) x (153mm)

Weight
5 oz.

Finish
Polished Nickel trim / Metallic Cabernet Red Body

Manufacturer: Avantone
