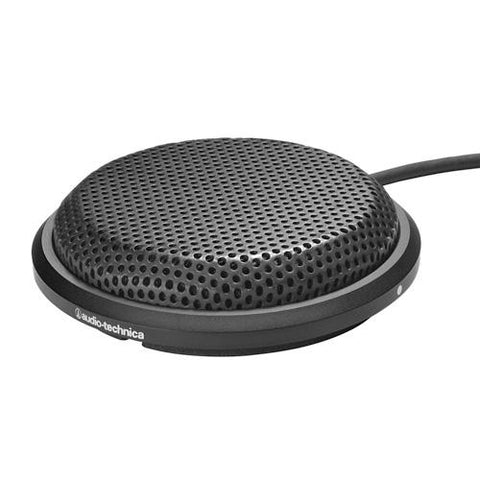

Audio-Technica U843R

Audio-Technica U843R

AUDU843R

Audio-Technica

  • £344.00
Usually shipped within 2-3 working days

With three cardioid condenser elements in a single housing, the phantom-powered U843R offers a remarkably versatile tool for surface-mount installations.

Levers on the microphone base allow easy reorientation of two elements to offer 360° or 300° coverage. Since elements can be powered and used individually or in any combination, further flexibility is easily achieved. For example, with two elements powered, the microphone can provide a figure-of-eight polar pattern; with a single element powered, the microphone functions as a standard cardioid boundary microphone.

Installation and repositioning are extremely quick, thanks to four recessed pathways on the base of the microphone that enable the user to route the cable as required to accommodate any installation requirements; no tools or disassembly are needed. The microphone also offers Audio-Technica’s innovative UniGuard® RFI-shielding technology.

Product Features

  • Three cardioid condenser elements mounted in a single housing
  • Easily reposition two elements (via levers on the microphone base) to offer 360° or 300° coverage; each element can be powered and used individually or in any combination
  • Also functions as a stereo boundary microphone
  • Provides full, efficient and flexible coverage—fewer microphones required
  • Small-diameter capsules near boundary eliminate phase distortion and deliver clear, high-output performance
  • Low-frequency attenuation improves sound pickup without affecting voice quality
  • Cable routes through any of four recessed pathways on the microphone base (or down for direct feed through a table surface); no tools or disassembly required
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Heavy die-cast case and non-slip silicone foam bottom pad minimizes coupling of surface vibration to the microphone
  • Low-profile design with low-reflectance finish for minimum visibility

                                                                                                  Product Specifications

                                                                                                  Element Fixed-charge back plate, permanently polarized condenser
                                                                                                  Polar Pattern Hemispherical Cardioid x3 (combine to omni-directional or bidirectional)
                                                                                                  Frequency Response 70 - 16,000 Hz
                                                                                                  Open Circuit Sensitivity -37 dB (14.1 mV) re 1V at 1 Pa
                                                                                                  Impedance 100 ohms
                                                                                                  Maximum Input Sound Level 134 dB SPL, 1 kHz at 1% T.H.D.
                                                                                                  Switches The lever of elements can adjust the proper position
                                                                                                  Dynamic Range 105 dB, 1 kHz at Max SPL
                                                                                                  Signal-to-Noise Ratio 65 dB, 1 kHz at 1 Pa
                                                                                                  Phantom Power Requirements 11-52V DC, 2 mA typical
                                                                                                  Weight 160 g
                                                                                                  Dimensions 20.0 mm - height ; 85.0 mm – maximum body diameter
                                                                                                  Output Connector 3-pin XLRM-type
                                                                                                  Cable 7.6 m long (permanently attached to microphone), 4 mm diameter, 6 conductor, shielded cable; output end stripped and tinned for connection to electronic device
                                                                                                  Accessories Included Soft protective pouch
                                                                                                  Manufacturer: Audio Technica
