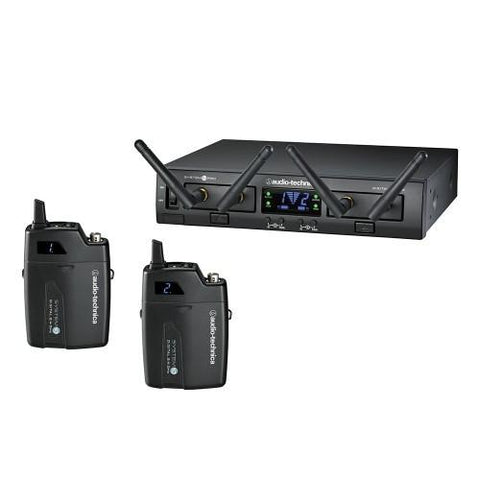

Audio-Technica ATW-1311 Digital Wireless System

Audio-Technica ATW-1311 Digital Wireless System

AUDATW1311

Audio-Technica

  • £714.00
Usually shipped within 2-3 working days

The Audio-Technica ATW-1311 "System 10 Pro" rack-mountable digital wireless system on 2.4Ghz is so simple to use, so dependable and so automatic that you'll never have to think about it.

Set it up anywhere, turn it on and its good to go.

Like the rest of the range System 10, the System 10 Pro works in 24-bit / 48 kHz, and allows easy use while ensuring clear and natural sound quality.

The system offers three levels of diversity: frequency, time and space. Frequency diversity sends the signal to two frequencies allocated for communication without interference. The time diversity sends the signal in several time slots to optimise immunity against multipath interference. Finally, space diversity uses two antennas on each transmitter and receiver to maximise signal integrity.

Main Features

  • 2.4 GHz 24-bit / 48kHz Digital wireless system
  • No interference, as operates outside of DTV or 3G bands
  • Automatic Frequency Selection. Plug & Play. Ease of use and reliability
  • Offers 3 levels of diversity (frequency, time and space) to ensure communication without interference
  • Rackable metal chassis, comes with a removable receiver (Kit setting rack included)
  • Supplied with 2 extractable receivers in the chassis, and two bodypack transmitters
  • Users can pair each receiver with up to 10 transmitters
  • 2 frames or 4 receivers can fit in a 19 '' 1U rack
  • Possibility to chain up to 5 frames (10 receivers) using RJ12 type cables (one cable per system)
  • Up to 10 systems can be used simultaneously without any frequency coordination problems or group selection
  • Hi-Fi audio quality over the whole frequency range (20 Hz to 20 kHz)
  • No compression during transmission and reception for clear, natural sound

                Product Specifications

                Overall System
                Operating Frequencies 2.4 GHz ISM band
                Frequency Response 20 Hz to 20 kHz Depending on microphone type
                Operating Range 60 m (200') Open range env. with no interfering signals
                Dynamic Range >109 dB (A-weighted), typical
                Total Harmonic Distortion <0.05% typical
                Operating Temperature Range 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
                Audio Sampling 24 bit / 48 kHz
                Latency 3.8 ms
                Receiver
                Receiving System Diversity (frequency/time/space)
                Output Connectors (Microphone) Remote Receiver Connector: RJ45
                Link Connector: RJ12
                Maximum Output Level XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
                Power Supply 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
                Dimensions 209.8 mm (8.26") W x 44 mm (1.73") Hx 169.3 mm (6.67") D
                Weight 940g
                Accessories Included Included AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet
                Belt Pack
                RF Power Output 10 mW
                Spurious Emissions Following federal and national regulations
                Input Connections Four-pin Locking Connector,
                Pin 1: GND,
                Pin 2: INST INPUT,
                Pin 3: MIC INPUT,
                Pin 4: DC BIAS +9V
                Battery Type Two 1.5V AA
                Battery Life >7 hours (alkaline) Depending on batt. type & use pattern
                Dimensions 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
                Net Weight 100g

                Manufacturer: Audio Technica
