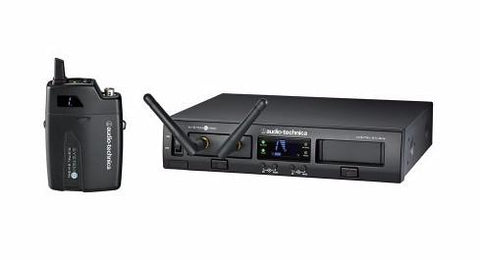

Audio-Technica ATW-1301 System 10

Audio-Technica ATW-1301 System 10

AUDATW1301

Audio-Technica

  • £426.00
Usually shipped within 2-3 working days

The Audio-Technica ATW-1301 System 10 rack-mountable digital wireless bodypack system on 2.4Ghz is so simple to use, so dependable and so automatic that you'll never have to think about it. Set it up anywhere, turn it on and its good to go.

Like the rest of the range System 10, the System 10 Pro works in 24-bit / 48 kHz, and allows easy use while ensuring clear and natural sound quality. The system offers three levels of diversity: frequency, time and space.

Frequency diversity sends the signal to two frequencies allocated for communication without interference. The time diversity sends the signal in several time slots to optimise immunity against multipath interference. Finally, space diversity uses two antennas on each transmitter and receiver to maximise signal integrity.

Main Features

  • 2.4 GHz 24-bit / 48kHz Digital wireless system
  • No interference, as operates outside of DTV ;or 3G bands
  • Automatic Frequency Selection. Plug & Play. Ease of use and reliability
  • Offers 3 levels of diversity (frequency, time and space) to ensure communication without interference
  • Rackable metal chassis, comes with a removable receiver (Kit setting rack included)
  • Possibility of 2 interchangeable receivers per chassis
  • Users can pair each receiver with up to 10 transmitters
  • 2 frames or 4 receivers can fit in a 19" 1U rack
  • Possibility to chain up to 5 frames (10 receivers) using RJ12 type cables (one cable per system)
  • Up to 10 systems can be used simultaneously without any frequency coordination problems or group selection
  • Hi-Fi audio quality over the whole frequency range (20 Hz to 20 kHz)
  • No compression during transmission and reception for clear, natural sound

    Specifications

    Overall System
    Operating Frequencies 2.4 GHz ISM band
    Frequency Response 20 Hz to 20 kHz Depending on microphone type
    Operating Range 60 m (200') Open range env. with no interfering signals
    Dynamic Range >109 dB (A-weighted), typical
    Total Harmonic Distortion <0.05% typical
    Operating Temperature Range 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
    Audio Sampling 24 bit / 48 kHz
    Latency 3.8 ms
    Receiver
    Receiving System Diversity (frequency/time/space)
    Output Connectors (Microphone) Remote Receiver Connector: RJ45
    Link Connector: RJ12
    Maximum Output Level XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
    Power Supply 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
    Dimensions 209.8 mm (8.26") W x 44 mm (1.73") Hx 169.3 mm (6.67") D
    Weight 940g
    Accessories Included Included AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet
    Belt Pack
    RF Power Output 10 mW
    Spurious Emissions Following federal and national regulations
    Input Connections Four-pin Locking Connector,
    Pin 1: GND,
    Pin 2: INST INPUT,
    Pin 3: MIC INPUT,
    Pin 4: DC BIAS +9V
    Battery Type Two 1.5V AA
    Battery Life >7 hours (alkaline) Depending on batt. type & use pattern
    Dimensions 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
    Net Weight 100g
    Manufacturer: Audio Technica
