Audio-Technica ATW-1101 System 10

Audio-Technica ATW-1101 System 10

AUDATW1101

Audio-Technica

  • £239.00
Usually shipped within 2-3 working days

The Audio Technica ATW-1101 System 10 Digital Bodypack Wireless System on 2.4Ghz is the most reliable digital high-fidelity wireless system of its generation.

Designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality.

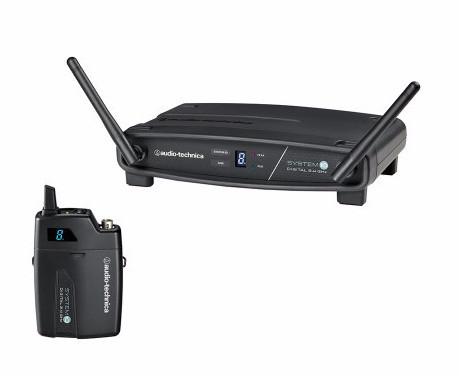

Featuring stackable, contemporary styling, each configuration includes a mono ATW-R1100 receiver and an ATW-T1001 body-pack transmitter. The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights.

Main Features

  • Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
  • 2.4 GHz range – completely free from TV/ 3G interference
  • Three levels of diversity assurance: frequency, time, & space
  • Automatic frequency selection for seamless, interference-free operation
  • Automatic Frequency Selection. Plug & Play. Ease of use and reliability
  • Extremely easy operation with instantaneous channel selection, sync, and set-up
  • State-of-the-art digital receiver for reliable performance
  • Balanced XLR and unbalanced 1/4” output jacks with level control

Specifications

Overall System
Operating Frequencies 2.4 GHz ISM band
Frequency Response 20 Hz to 20 kHz Depending on microphone type
Operating Range 30 m (100') Open range env. with no interfering signals
Dynamic Range >109 dB (A-weighted), typical
Total Harmonic Distortion <0.05% typical
Operating Temperature Range 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
Audio Sampling 24 bit / 48 kHz
Latency 3.8 ms
Receiver
Receiving System Diversity (frequency/time/space)
Maximum Output Level XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
Power Supply 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
Dimensions 190 mm W x 46.2 mm Hx 128.5 mm D
Weight 290g
Accessories Included Power supply
Belt Pack
RF Power Output 10 mW
Spurious Emissions Following federal and national regulations
Input Connections Four-pin Locking Connector,
Pin 1: GND,
Pin 2: INST INPUT,
Pin 3: MIC INPUT,
Pin 4: DC BIAS +9V
Battery Type Two 1.5V AA
Battery Life >7 hours (alkaline) Depending on batt. type & use pattern
Dimensions 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
Net Weight 100g
Manufacturer: Audio Technica
