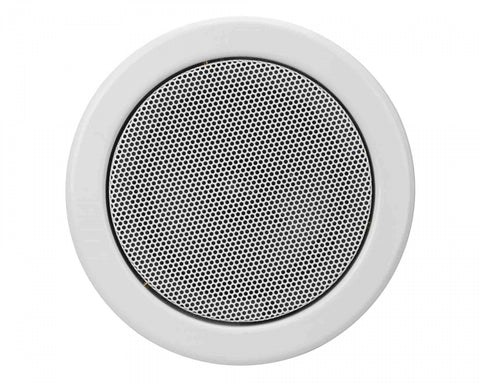

Apart EN-CM5T6 5" Speaker

The Apart EN-CM5T6 is a 5.25” built-in ceiling speaker made of powder coated steel (RAL 9010 equivalent), equipped with a high efficiency full range speaker and a multi tap 100 volt transformer, all certified according EN 54-24.

The unit is equipped with a ceramic speaker line connector block, thermal fuse and a metal fire dome.

The installation of this speaker is easy thanks to the spring loaded clamps and the included PG16 cable gland.  The speaker with its excellent intelligibility is a perfect budget oriented solution for background music, paging and evacuation systems messages.

The EN-CM5T6 100 volt speaker is equipped with a reliable 1.5 – 3 – 6 watts 100 volt transformer.

Main Features

• 5.25" built-in ceiling speaker made of powder coated steel
• Equiped with ceramic speaker line connector block, thermal fuse
• Simple installation with spring loaded clamps and PG16 cable gland
• Equipped with a reliable 1.5 - 3 - 6 watts 100 volt transformer
• EN 54-24 certified
• Idea for background music, paging and evacuation messages
• In white


Product Specifications

General

• Loudspeaker system: full range
• Woofer size: 5.25 inch
• Woofer cone material: coated paper
• Mounting system: 3 clamps
• 100V transformer power taps: 6 - 3 - 1.5 watts
• Low impedance dynamic power: 6 watts
• SPL 1W/1m: 93,5 dB
• Max SPL 1m: 101,3 dB
• Frequency response: 320 - 19 k Hz
• Main construction material: steel
• IP rating: 50
• Applicable low impedance: no
• Applicable in 100V: yes
• Certificate ref: 1438/CPR/0351
• Vertical dispersion angle 1000 Hz: 180°

Physical & Dimensions

• Cutout: 172mm
• Outside diameter: 180mm
• Depth: 158mm
• Innerdimension: 169mm
• Weight: 1.27kg

Manufacturer: Apart
