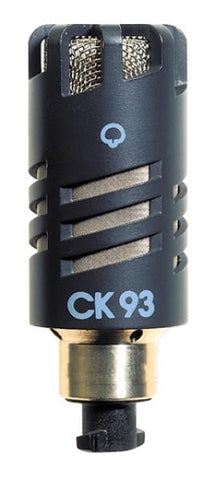

AKG CK93 Capsule

AKG CK93 Capsule

AKGCK93

AKG

  • £225.00
Usually shipped within 2-3 working days

The CK93 high-performance small condenser capsule is characterised by a smooth and well-balanced frequency response and a consistent hypercardioid polar pattern.

It provides greater attenuation of off-axis sound and more direct sound. Thus it is the ideal choice for critical live and studio broadcast applications where consistent suppression of off-axis sound is required.

The CK93 is part of the Blue Line Series and works exclusively with the SE300 B pre-amp module. Its robust Modulock™ bayonet coupling allows quick and easy changing of the capsules modules.

Hyper-cardioid polar pattern with excellent on-axis response
for best sound quality at highest gain before feedback

Robust Modulock™ bayonet design
allows quick and easy changing of the capsules

Self-cleaning contacts
ensure reliable operation and long life

SPECIFICATION

General
Audio frequency bandwidth 20 to 20000 Hz
Equivalent noise level 17 dB-A
Sensitivity 10 mV/Pa
Signal to Noise 77 dB-A
Electrical impedance 200 Ohms
Recommended load impedance 1000 Ohms
Polar Patterns
Hypercardioid
Powering Interface
Voltage 9 to 52 V
Current 2 mA
Audio Output
Type bayonet mount
Design
Finish dark gray
Dimensions / Weight
Height 51 mm
Diameter 19 mm
Manufacturer: AKG
