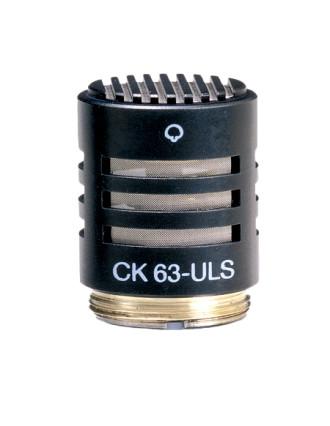

AKG CK63 ULS Capsule

AKG CK63 ULS Capsule

AKGCK63ULS

AKG

  • £275.00
Usually shipped within 2-3 working days

The CK63 ULS professional small hypercardioid condenser capsule is characterised by a ruler-flat frequency response.

Its polar pattern provides unmatched channel separation, exceptional off-axis rejection and high gain before feedback.

This microphone widely used in broadcast and recording studios as well as on stages around the world.The CK63 ULS works exclusively with the C480 B pre-amp.

To ensure an extra-long life and a reliable connection, the capsule is equipped with large-area, self-cleaning, gold-plated contacts.

Careful attention to detail and the highest manufacturing standards make the Ultra Linear Series modular system the choice of experienced technicians worldwide.

Hypercardioid polar pattern with excellent on-axis response
for pure pristine sound quality at high gain before feedback

Self-cleaning contacts
ensure reliable operation and long life

Carefully handcrafted in Vienna, Austria
meticulous attention to detail ensures highest quality

SPECIFICATION

General
Audio frequency bandwidth 20 to 20000 Hz
Equivalent noise level 11 dB-A
Sensitivity 20 mV/Pa
Signal to Noise 83 dB-A
Bass cut filter 100 Hz
Electrical impedance 150 Ohms
Recommended load impedance 2000 Ohms
Polar Patterns
Hypercardioid
Powering Interface
Voltage 48 to 48 V
Current 2 mA
Audio Output
Type Balanced XLR
Gender Male
Contacts 3-pin
Design
Finish matte black
Dimensions / Weight
Height 27 mm
Diameter 21 mm

Manufacturer: AKG
