AKG CK 77 WR L/P Lavalier

AKG CK 77 WR L/P Lavalier

AKGCK77WRLP

AKG

  • £175.00
Usually shipped within 2-3 working days

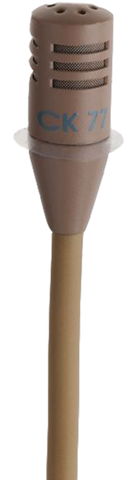

The CK77 WR L/P fleshtone lavalier microphone is an extremely small, omnidirectional professional lavalier microphone.

The patented dual-diaphragm capsule has been designed to protect the transducer from moisture and perspiration.

The CK77 WR uses two vertical diaphragms mounted back to back to cancel out mechanical and cable noise by mixing the signals of both capsules out of phase.

Its ruggedness and superior sound quality make it an excellent tool for theatre and broadcast applications. The screw-on module capsule allows quick and easy service of the microphone.

The CK77 WR L is available in three versions, differing in colour and connector.

FEATURES:

  • Dual-diaphragm transducer - for suppression of cable noise
  • Resistant to moisture, perspiration and salt - withstands sudorific stage performances
  • Interchangeable capsule module - for quick and easy service
  • Omnidirectional polar pattern - for unchanging sound quality in all directions

SPECIFICATION:

General
Audio frequency bandwidth 20 to 20000 Hz
Equivalent noise level 37 dB-A
Sensitivity 8 mV/Pa
Signal to Noise 68 dB-A
Electrical impedance 3500 Ohms
Recommended load impedance 10000 Ohms
Powering Interface
Voltage 1.5 to 12 V
Current 0.6 mA
Audio Output
Type Mini XLR
Gender Female
Contacts 3-pin
Design
Finish Fleshtone
Dimensions / Weight
Height 14 mm
Diameter 5.5 - 5.5 mm
Net Weight 0.4 g

    Manufacturer: AKG
